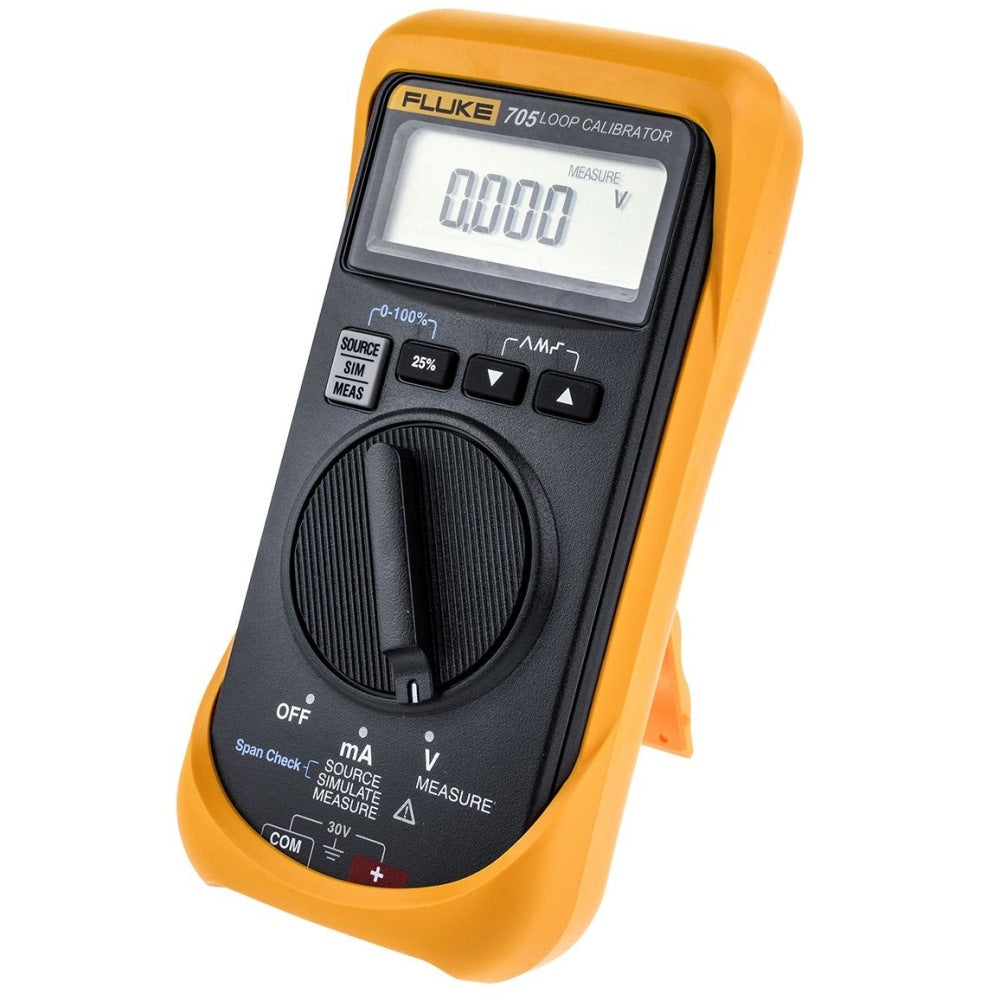

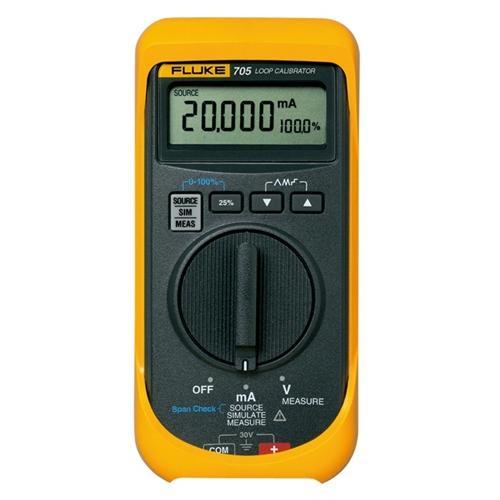

Fluke 705 Loop Calibrator

Price : On Request

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops and mA sourcing, simulation and measurement

Category: Tag:
FacebookPinterestRedditDeliciousWhatsappEmail


0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Includes span check for fast confirmation of zero and span.
Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
Includes a 24-volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
Runs on a single 9 V battery that is easily changed without breaking the calibration seal
Offers 0 – 20 mA or 4 – 20 mA default start-up modes
Comes with a protective yellow holster with test lead storage

Additional information

Weight 2000000 kg
